Solar Inverter Types Explained: String, Micro, Hybrid & Off-Grid — Which is Right for Kerala Homes?

A complete guide to solar inverter technology for Kerala homeowners. Comparing string inverters, microinverters, hybrid inverters with battery backup, and off-grid inverters — efficiency, cost, KSEB compatibility, and best use cases.

By GSR Technical Engineering Desk·Published: March 20, 2025·February 2026 Verified

Official Reference: Bureau of Indian Standards (BIS) / Central Electricity Authority (CEA)(IS 16221 (Part 1 & 2): Safety Requirements for Inverters for PV Power Systems)

View Official Source

Disclaimer: GSR Energies is an independent solar EPC contractor empaneled for PM Surya Ghar & KSEB net-metering installations. Government policies and subsidy guidelines are referenced directly from MNRE/KSEB official notifications.

Key Takeaways at a Glance

A solar inverter converts DC electricity from your solar panels into 230V AC electricity compatible with household appliances and the KSEB grid.
String inverters are the most common and cost-effective choice for Kerala residential rooftops — ideal for unshaded south-facing roofs.
Microinverters install one small inverter per panel, eliminating shade losses — best for partially shaded roofs with multiple orientations.
Hybrid inverters combine solar generation, battery charging, and grid connectivity in one unit — essential for uninterrupted 24/7 power.
Off-grid inverters operate completely disconnected from KSEB — suited for remote locations, agricultural pumps, or sites without KSEB access.
BIS IS 16221 certification is mandatory for any grid-connected solar inverter in India — always verify before purchase.

Table of Contents

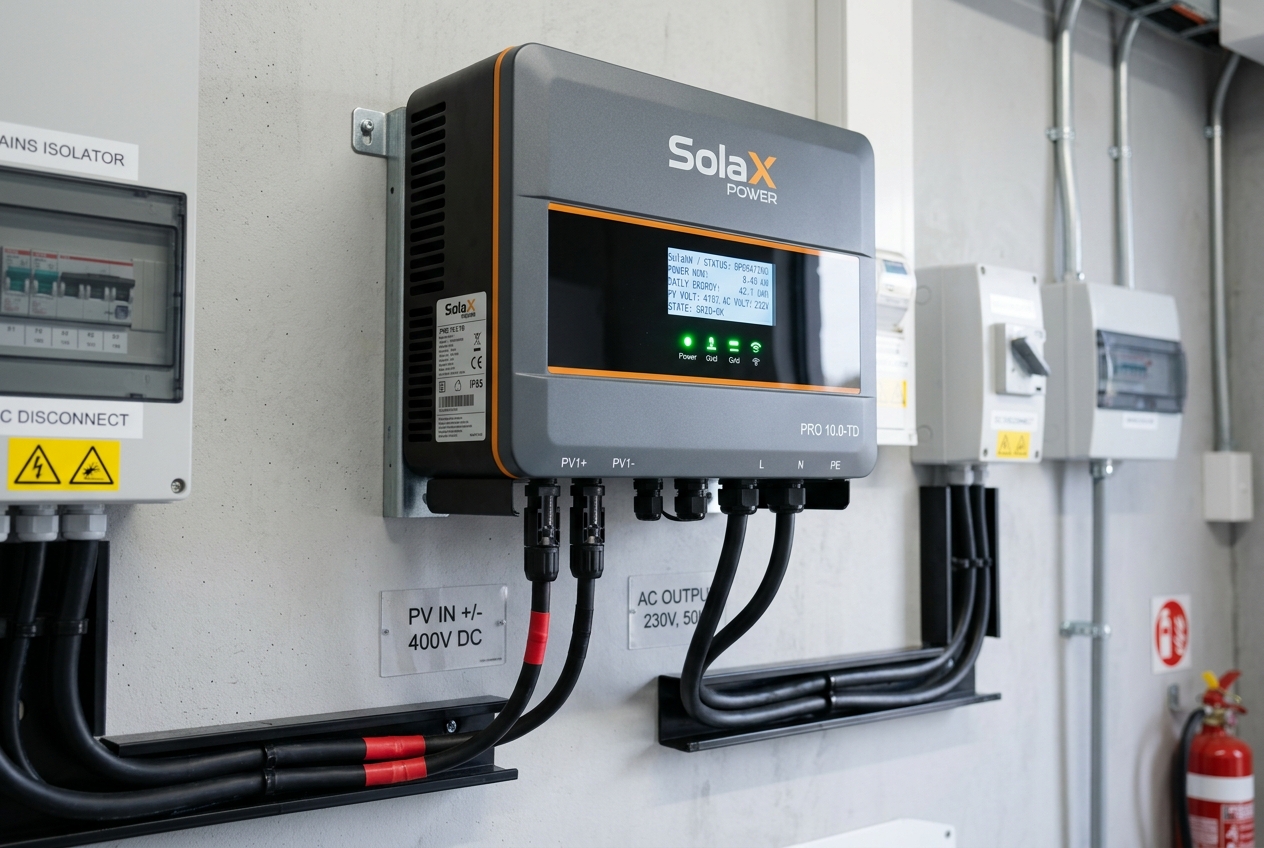

String Inverters — The Standard Choice for Kerala Rooftops

String inverters wire solar panels together in series strings, feeding combined DC power into a single central inverter that converts it to AC. They are the most mature technology, the most affordable per watt, and the simplest to maintain. For Kerala flat-roof residential buildings with minimal shading and a good south-facing orientation, a quality string inverter from Solis, Growatt, SMA, or Fronius provides excellent performance.

Modern string inverters include integrated WiFi monitoring portals, allowing you to track generation from a mobile app in real-time. Many also include built-in arc fault detection and anti-PID protection for safety.

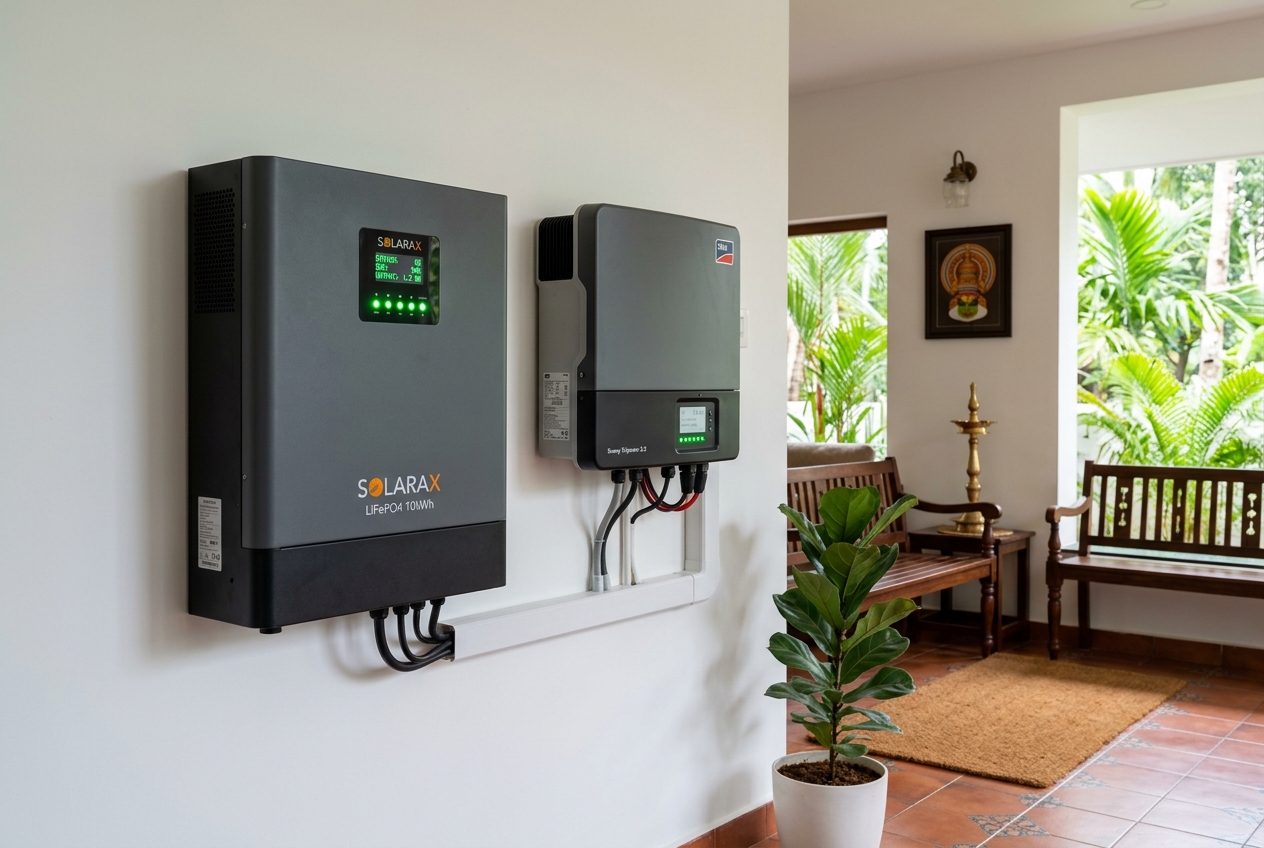

Hybrid Inverters — Complete Power Security for Kerala Homes

A hybrid inverter is a sophisticated multi-mode device that simultaneously manages three power flows: solar panel DC input, battery charging/discharging, and KSEB grid exchange. When the grid is live, it can export surplus solar to KSEB (net metering). When the grid fails, it instantly disconnects from KSEB and powers your home exclusively from solar and battery — with transition times under 10-20ms (imperceptible).

Hybrid inverters are the recommended solution for Kerala households in areas prone to KSEB power interruptions and for those with critical loads such as medical equipment, home offices, or water pumps.

Inverter Type	Grid Needed?	Battery Support	Best For	Approx Cost (3kW)
String On-Grid	Yes	No	Urban net-metering homes	₹18,000–₹25,000
Hybrid	Optional	Yes (LiFePO4)	Power-outage prone homes	₹45,000–₹75,000
Microinverter	Yes	No	Shaded / multi-orientation roofs	₹35,000–₹55,000
Off-Grid	No	Yes (Lead/Li)	Remote / no-grid locations	₹30,000–₹50,000

Kerala Rooftop Solar & KSEB Implementation Impact

How these regulations, technical specifications, and standards apply specifically to homes and commercial setups connected to the Kerala State Electricity Board (KSEBL) grid:

For most Kerala urban and semi-urban homes with unshaded flat or sloped roofs, a quality BIS-certified string inverter (Solis, Growatt, SMA, Fronius) provides the best value.
Homes in power outage-prone rural Kerala districts (Idukki, Wayanad, Palakkad) benefit significantly from hybrid inverters with LiFePO4 battery backup.
Coastal Kerala homes must specify IP65 or higher enclosure-rated inverters to resist salt-air corrosion near the Arabian Sea.

Frequently Asked Questions

Which inverter brand does GSR Energies install?

We install Tier-1 BIS-certified inverters from Solis, Growatt, Fronius, SMA, and Deye depending on system size and client requirements. For hybrid systems, we prefer Deye and Solis hybrid series paired with CATL or Dyness LiFePO4 batteries.

What is the warranty on solar inverters?

Most premium string inverters carry a 5-year standard warranty, extendable to 10 years. Hybrid inverters typically come with 5-year full warranty. GSR Energies provides full on-site service during the warranty period under our AMC contracts.
